Center Brake Light

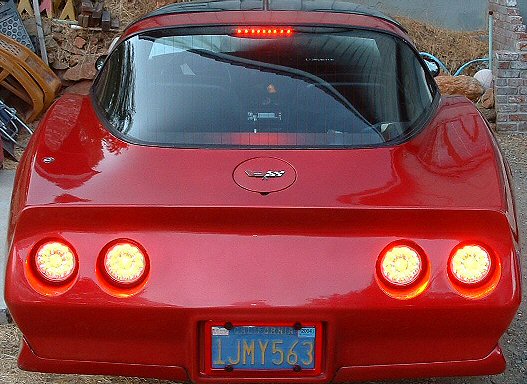

For a little extra visibility I installed a center brake light. The light was made by Truck-Lite who normally sell through truck part houses. Others can be found at JC Whitney and on the web.

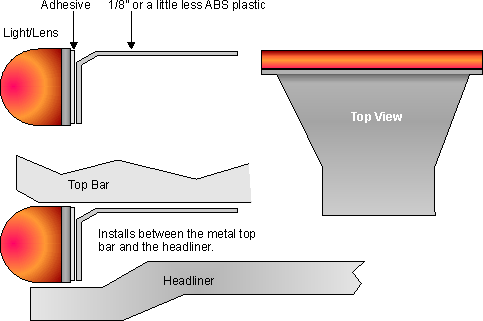

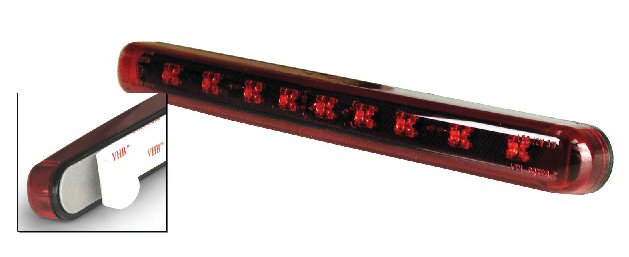

The Truck-Lite unit has an adhesive strip along the back for mounting. I made a crude mount from ABS plastic then stuck the light to it. The mount was then placed between the liner and the roof frame. I cannot remember if the bracket was screwed into the frame or just help in by he liner.


The wiring was pretty straight forward but some work. A single conductor must be run from the triggered side of the brake light switch to the light. The other lead can be grounded any where.
